C2060H/A1 – 104/4 agricultural chain

"CA" TIP VALJKASTOG LANCA SA HORIZONTALNIM NOSAČIMA
LANAC ZA LETVE ZA DVOREDNI BERAČ "SIP"

Code 1002595
Designation CA2060H/A1-104/4
Brand SHWARTZ
Unit of measure KOM
Catalogue Number -

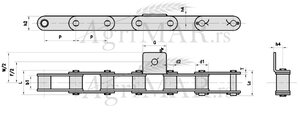

Pitch P (mm) 38.1
Pitch P (zoll) 1 ½
Width between Inner plates b1 (mm) 12.7
Roller diameter d1 (mm) 11.91
Pin diameter d2 (mm) 5.94
Pin length L max (mm) 29.2
Pin length Lc max (mm) 31.6
Height h2 (mm) 18
Plate thickness T (mm) 3.25
G (mm) 28.6
W (mm) 67.8
F (mm) 42.9
d4 (mm) 5.5
h4 (mm) 14.7
Chain length (number of links) 104
Chain length (m) 3.95
No. of transport links 26
Disposition of transport links Svaki 4 članak
Weight (kg)
OEM No.
Usage
YOUR PRICE with VAT: 0,00 RSD
AGRIMAR d.o.o. makes maximum use of all its resources so that all items on this site are shown to you with correct names, specifications, photos, stock and prices. However, we cannot guarantee that all information and photos of items on this site are completely accurate.
