12B-1/K1/4 roller chain

JEDNOREDNI VALJKASTI LANAC DIN 8187 SA OBOSTRANIM HORIZONTALNIM NOSAČIMA K1 NA SVAKOM ČETVRTOM ČLANKU

Code 1004349
Designation 12B-1/K1/4
Brand SHWARTZ
Unit of measure M
Catalogue Number -

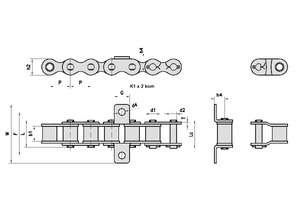

Pitch P (mm) 19.05
Pitch P (zoll) 3/4
Width between Inner plates b1 (mm) 11.68
Roller diameter d1 (mm) 12.07
Pin diameter d2 (mm) 5.72
Plate thickness t/T (mm) 1.85
Height h2 (mm) 16.2
G (mm) 16
F (mm) 38.2
W (mm) 53.6
T (mm) 1.88
h4 (mm) 13.46
d4 (mm) 6.4
Disposition of transport links svaki 4 članak
Weight (kg) 1.3
OEM No.
Usage
YOUR PRICE with VAT: 0,00 RSD
